Name: Road Construction Compact Motor Grader XCMG GR3005T PRO
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: GR3005T Pro
Price: 1.00 USD
Availability: InStock

Home > Products > Road Construction Machinery >

Road Construction Compact Motor Grader XCMG GR3005T PRO

XCMG GR3005T PRO

XCMG GR3005T PRO Compact Motor Grader

Road Construction Compact Motor Grader

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

GR3005T Pro

Request A Quote

Product Details

Highlight:

XCMG GR3005T PRO

XCMG GR3005T PRO Compact Motor Grader

Road Construction Compact Motor Grader

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

ROAD CONSTRUCTION XCMG GR5505T PRO LAGER MINING MOTOR GRADER 30% GRADEABILITY 25MPA

Get Best Price

2019 Cat 140GC with only 10,316 working hours for sale

Get Best Price

2018 SEM919 Motor Grader for Sale

Get Best Price

26ton XCMG XP263 Tire Roller China Stage III Road Construction Equipment

Get Best Price

Contact Now

Product Description

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number: GR3005T Pro	Certification: ISO,CE
Rated Working Pressure: 25MPa	Max. Gradeability: ≥30%	Dimension: 10923x3270x3850mm
Total Weight: 28500kg	Engine: QSL8.9	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

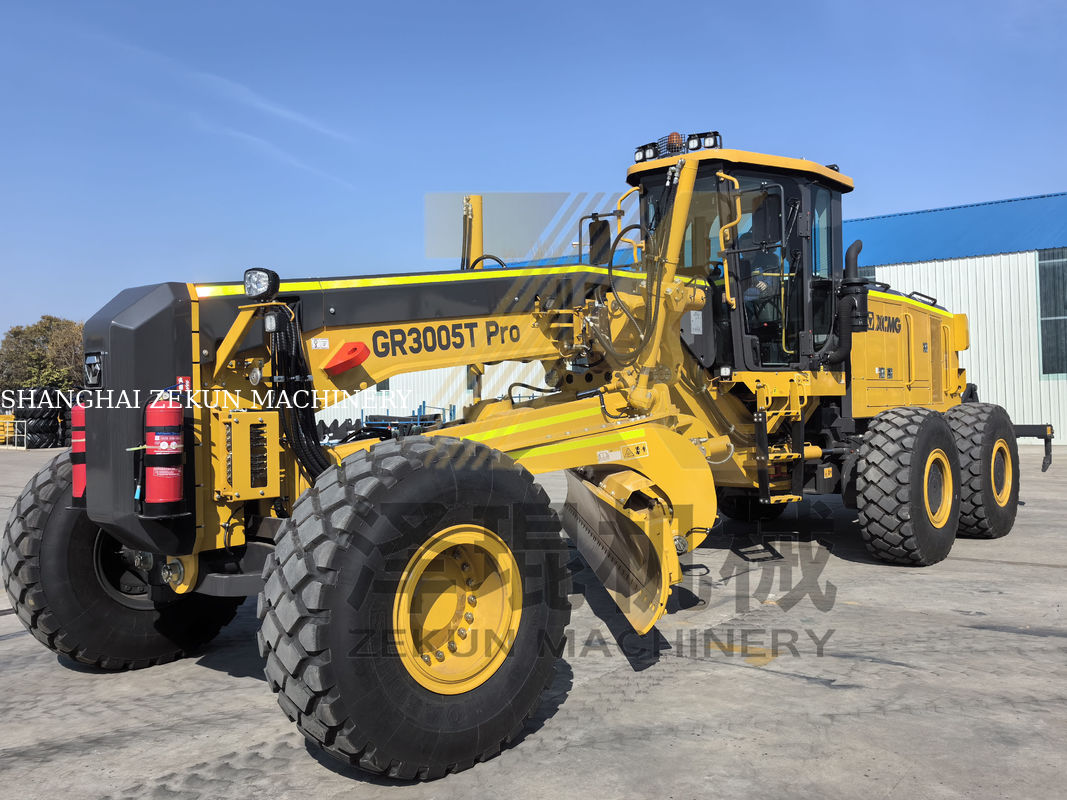

Road Construction Compact Motor Grader XCMG GR3005T PRO 1 　

Item			GR3005T Pro (NAF axle)	GR3005T Pro (Meritor axle)
Basic parameters	Engine model		QSL8.9	QSL8.9
	Rated power/speed		242kW/2200rpm	242KW/2200rpm
	Machine dimension(standard)		10923x3270x3850mm	10923x3270x3850mm
	Machine weight(standard)		28500kg	28500kg
	Tire specification		20.5R25	20.5R25
	Ground clearance (Front axle)		625mm	625mm
	Wheel track		2700mm	2700mm
	Axle distance between front and rear		7070mm	7070mm
	Wheel base between middle and rear		1960mm	1886mm
Performance parameters	Drive speed, forward		5,8,11,19,23,40km/h	5,8,11,19,23,40km/h
	Drive speed, reverse		5,11,23km/h	5, 11,23km/h
	Traction force f=0.75		≥140kN	≥140KN
	Maximum gradeability		≥30%	≥30%
	Tire inflation pressure		475kPa	475kPa
	Work system pressure		25MPa	25MPa
	Transmission box pressure		1.6±0.2Mpa	1.6±0.2Mpa
Working parameters	Maximum steering angle, front wheel		±48°	±48°
	Allowable tilt angle, front wheel		±17°	±17°
	Maximum oscillation, front axle		±15°	±15°
	Maximum oscillation, balance box		Front 15°, rear 15°	Front 15°, rear 15°
	Maximum steering angle, frame		±23°	±23°
	Minimum turning radius		9m	9m
	Blade	Maximum it above ground	420mm	420mm
		Maximum cutting depth	838mm	838mm
		Maximum tit angle	90°	90°
		Cutting angle	Front 40° rear 5°	Front 40° rear 5°
		Swivel angle	360°	360°
		Length * height	4572x686mm	4572x686mm
Capacities	Coolant		50L	50L
	Fuel tank		480L	480L
	Engine		24L	24L
	Transmission box		38L	38L
	Balance box		93L each	90L
	Main reducer and wheel reducer		106L	82L
	Hydraulic oil		210L	210L

Road Construction Compact Motor Grader XCMG GR3005T PRO 2

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
