Name: XCMG GR5505T PRO Grader Road Construction 25MPa
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: GR5505T PRO
Price: 1.00 USD
Availability: InStock

Home > products > Road Construction Machinery >

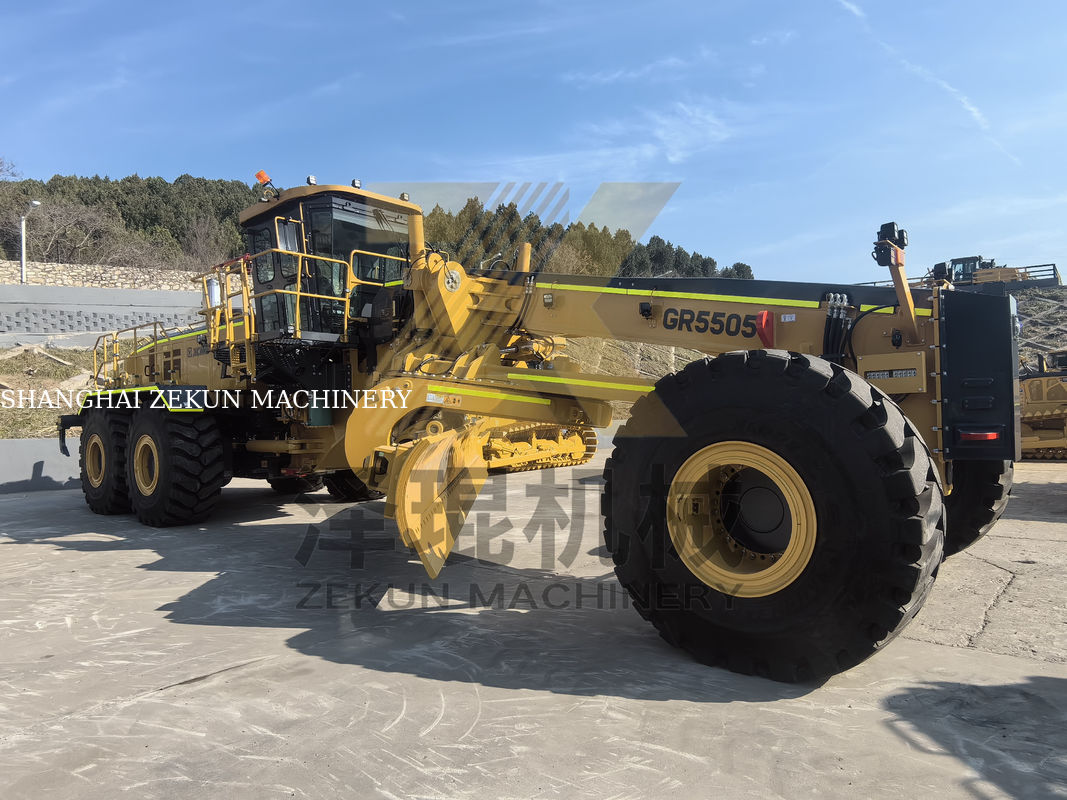

XCMG GR5505T PRO Grader Road Construction 25MPa

25MPa XCMG GR5505T PRO Grader

Road Construction XCMG GR5505T PRO Grader

XCMG Motor Grader

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

GR5505T PRO

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

23ton XCMG 3Y263J Static Three Drum Roller China Stage III Equipment

Get Best Price

12ton XCMG 3Y153J Static Drum Roller China Stage III Equipment

Get Best Price

3ton XCMG XMR303 Vibratory Roller China Stage IV Road Machine

Get Best Price

16ton XCMG XS163 Vibratory Roller China Stage II Equipment

Get Best Price

Contact Now

Product Description

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number:GR5505T Pro	Certification: ISO,CE
Rated Working Pressure: 25MPa	Max. Gradeability: ≥30%	Dimension: 1643045604810mm
Total Weight: 74000kg	Engine: 2806D-E18TA	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item			GR5505T PRO
Basic parameters	Engine model		2806D-E18TA
	Rated power/speed		447kW/2100rpm
	Machine dimension(standard)		1643045604810mm
	Machine weight(standard)		74000kg
	Tire specification		29.5R29
	Ground clearance (Front axle)		890mm
	Wheel track		3650mm
	Axle distance between front and rear		10460mm
	Wheel base between middle and rear		2240mm
Performance parameters	Drive speed, forward		4.6, 5.9, 8.7, 11.7, 17.7,25.1, 32.2,42.7km/h
	Drive speed, reverse		4.5,8.7,17.2, 32.6km/h
	Traction force f=0.75		≥390kN
	Maximum gradeability		≥30%
	Tire inflation pressure		500kPa
	Work system pressure		25MPa
	Transmission box pressure		/
Working parameters	Maximum steering angle, front wheel		±48°
	Allowable tilt angle, front wheel		±18°
	Maximum oscillation, front axle		±16°
	Maximum oscillation, balance box		Front 20°, rear 20°
	Maximum steering angle, frame		±25°
	Minimum turning radius		12.5m
	Blade	Maximum it above ground	460mm
		Maximum cutting depth	553mm
		Maximum tit angle	55°
		Cutting angle	40°
		Swivel angle	340°
		Length * height	7300x1025mm
Capacities	Coolant		75L
	Fuel tank		1100L
	Engine		72L
	Transmission box		120L
	Balance box		7OL
	Main reducer and wheel reducer		83L
	Hydraulic oil		280L

XCMG GR5505T PRO Grader Road Construction 25MPa 2

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
