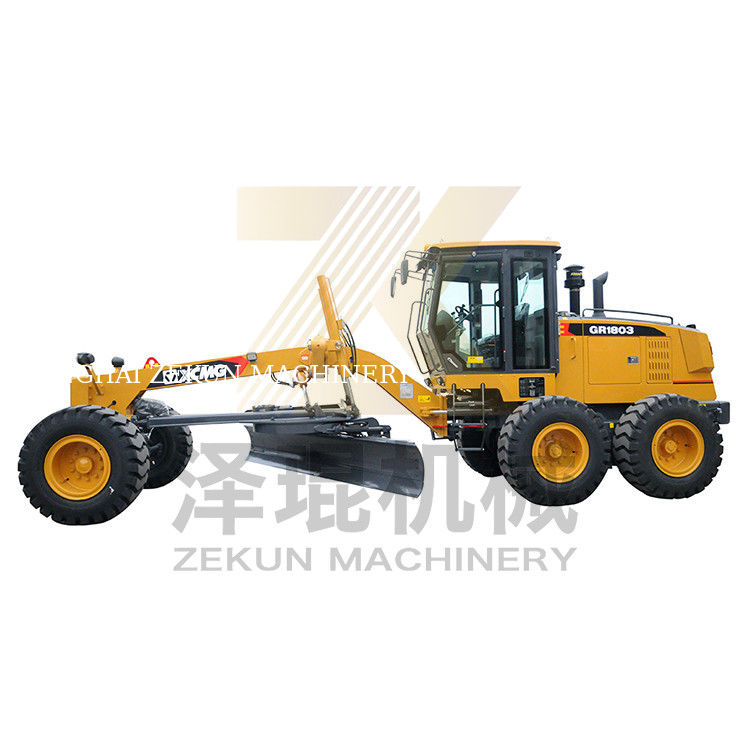

Name: XCMG GR1803 Construction Grader Road Machine 20MPa
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: GR1803
Price: 1.00 USD
Availability: InStock

Home > Products > Road Construction Machinery >

XCMG GR1803 Construction Grader Road Machine 20MPa

20MPa Construction Grader

Road Machine Construction Grader

XCMG Construction Grader

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

GR1803

Request A Quote

Product Details

Highlight:

20MPa Construction Grader

Road Machine Construction Grader

XCMG Construction Grader

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

ROAD CONSTRUCTION XCMG GR5505T PRO LAGER MINING MOTOR GRADER 30% GRADEABILITY 25MPA

Get Best Price

2019 Cat 140GC with only 10,316 working hours for sale

Get Best Price

2018 SEM919 Motor Grader for Sale

Get Best Price

26ton XCMG XP263 Tire Roller China Stage III Road Construction Equipment

Get Best Price

Contact Now

Product Description

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number:GR1803	Certification: ISO,CE
Rated Working Pressure: 20MPa	Max. Gradeability: ≥25%	Dimension: 8900х2625x3420mm
Total Weight: 15400kg	Engine: SC7H190.1G3	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content		Unit	GR1803
Basic parameter	Engine model			SC7H190.1G3
	Rated power/speed		kW/rpm	140/2000
	Machine dimension(standard)		mm	8900х2625x3420
	Machine weight(standard)		kg	15400
	Tire specification			17.5--25
	Wheel track		mm	2156
	Axle distance between front and rear		mm	6219
	Minimum ground clearance		mm	430
	Wheel base between middle and rear		mm	1568
Performance parameters	Drive speed, forward		km/h	5/8/11/19/23/38
	Drive speed, reverse		km/h	5/11/23
	Traction force f=0.75		kN	≥79
	Maximum gradeability		%	≥25
	Tire inflation pressure		kPa	260
	Work system pressure		MPa	20
	Transmission box pressure		Mpa	1.4-1.8
Working parameters	Maximum steering angle, front wheel		°	±48
	Allowable tilt angle, front wheel		°	±17
	Maximum oscillation, front axle		°	±15
	Maximum oscillation, balance box		°	±15
	Maximum steering angle, frame		°	±27
	Minimum turning radius		m	7.3
	Blade	Maximum lift above ground	mm	400
		Maximum cutting depth	mm	500
		Maximum tilt angle	°	90
		Cutting angle	°	28-70
		Swivel angle	°	360
		Length × Height	mm	3965x610
Capacities	Coolant		L	50
	Fuel tank		L	280
	Engine		L	24
	Transmission box		L	38
	Balance box		L	120
	Drive axle		L	36
	Hydraulic oil		L	110

XCMG GR1803 Construction Grader Road Machine 20MPa 2
