Name: XCMG GR1905T 17.5--25 Tire Grader In Road Construction
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: GR1905T
Price: 1.00 USD
Availability: InStock

Home > Products > Road Construction Machinery >

XCMG GR1905T 17.5--25 Tire Grader In Road Construction

Road Construction Tire Grader

17.5--25 Tire Grader

XCMG Tire Grader

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

GR1905T

Request A Quote

Product Details

Highlight:

Road Construction Tire Grader

17.5--25 Tire Grader

XCMG Tire Grader

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

ROAD CONSTRUCTION XCMG GR5505T PRO LAGER MINING MOTOR GRADER 30% GRADEABILITY 25MPA

Get Best Price

2019 Cat 140GC with only 10,316 working hours for sale

Get Best Price

2018 SEM919 Motor Grader for Sale

Get Best Price

26ton XCMG XP263 Tire Roller China Stage III Road Construction Equipment

Get Best Price

Contact Now

Product Description

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number:GR1905T	Certification: ISO,CE
Rated Working Pressure: 24.5MPa	Max. Gradeability: ≥25%	Dimension: 9250x2625x3470mm
Total Weight: 15400kg	Engine: SC7H190.2G2	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content		Unit	GR1905T
Basic parameter	Engine model			SC7H190.2G2
	Rated power/speed		kW/rpm	140/2200
	Machine dimension(standard)		mm	9250x2625x3470
	Machine weight(standard)		kg	15400
	Tire specification			17.5--25
	Wheel track		mm	2156
	Axle distance between front and rear		mm	6516
	Minimum ground clearance		mm	610
	Wheel base between middle and rear		mm	1538
Performance parameters	Drive speed, forward		km/h	5/8/13/18/30/47
	Drive speed, reverse		km/h	5/13/30
	Traction force f=0.75		kN	83
	Maximum gradeability		%	≥25
	Tire inflation pressure		kPa	260
	Hydraulic system type			Open loop system
	Work system pressure		MPa	24.5
	Transmission box pressure		Mpa	1.85—2.2
Working parameters	Maximum steering angle, front wheel		°	±48
	Allowable tilt angle, front wheel		°	±18
	Maximum oscillation, front axle		°	±16
	Maximum oscillation, balance box		°	±15
	Maximum steering angle, frame		°	±25
	Minimum turning radius		m	7.4
	Blade	Maximum lift above ground	mm	520
		Maximum cutting depth	mm	750
		Maximum tilt angle	°	655/655
		Cutting angle	°	90
		Swivel angle	°	Front 40 rear 5
		Length × Height	mm	3965X610
Capacities	Coolant		L	50
	Fuel tank		L	380
	Engine		L	24
	Transmission box		L	38
	Balance box		L	120
	Drive axle		L	36
	Hydraulic oil		L	100

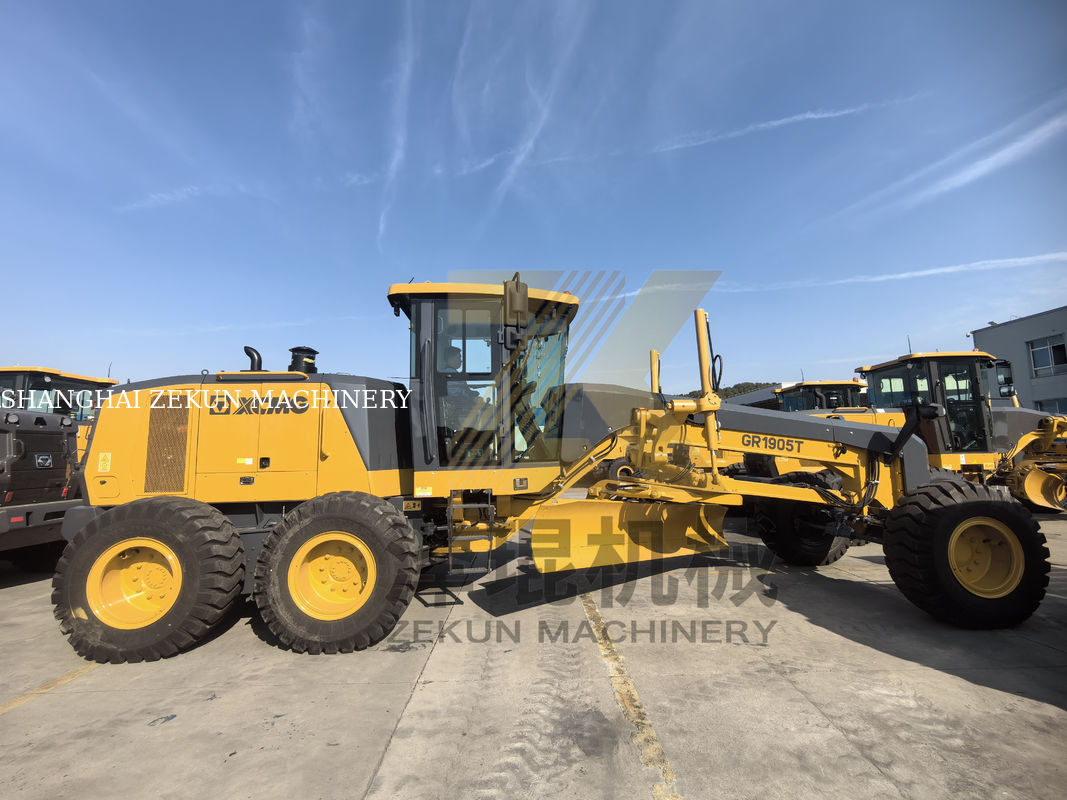

XCMG GR1905T 17.5--25 Tire Grader In Road Construction 2

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
