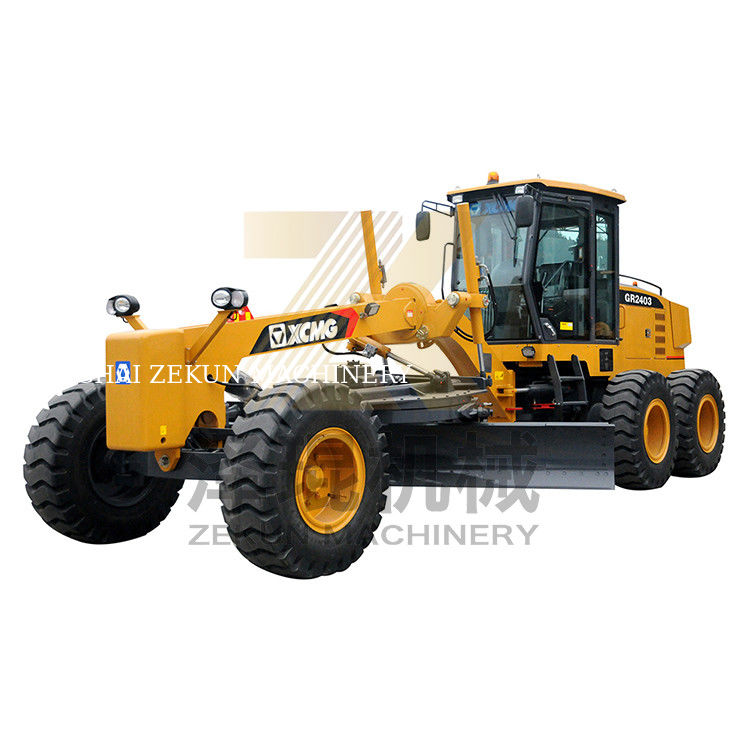

Name: Construction XCMG GR2403 Road Grader ISO / CE
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: GR2403
Price: 1.00 USD
Availability: InStock

Home > Products > Road Construction Machinery >

Construction XCMG GR2403 Road Grader ISO / CE

Construction Road Grader

ISO Road Grader

CE Road Grader

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

GR2403

Request A Quote

Product Details

Highlight:

Construction Road Grader

ISO Road Grader

CE Road Grader

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

ROAD CONSTRUCTION XCMG GR5505T PRO LAGER MINING MOTOR GRADER 30% GRADEABILITY 25MPA

Get Best Price

2019 Cat 140GC with only 10,316 working hours for sale

Get Best Price

2018 SEM919 Motor Grader for Sale

Get Best Price

26ton XCMG XP263 Tire Roller China Stage III Road Construction Equipment

Get Best Price

Contact Now

Product Description

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number:GR2403	Certification: ISO,CE
Rated Working Pressure: 20MPa	Max. Gradeability: ≥25%	Dimension: 8970x2625x3420mm
Total Weight: 17000kg	Engine: QSB6.7	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content		Unit	GR2403
Basic Parameters	Engine model			QSB6.7
	Rated power/speed		kW/rpm	178/2000
	Overall dimension (standard configuration)		mm	8970x2625x3420
	Overall weight (standard configuration)		kg	17000
	Tire specification			17.5-25
	Wheel track		mm	2156
	Distance between front and rear axles		mm	6219
	Distance between front and rear wheels		mm	1538
Performance Parameters	Forward speed		km/h	5/ 8/11 /19/ 23/38
	Reverse speed		km/h	5/11/13
	Traction, f=0.75		kN	≥87
	Maximum gradeability		%	≥25
	Tire pressure		kPa	260
	Pressure of working system		MPa	20
	Transmission pressure		Mpa	1.3-1.8
Working Parameters	Maximum steering angle of front wheel		°	±48
	Maximum tilting angle of front wheel		°	±17
	Maximum swinging angle of front axle		°	±15
	Maximum swinging angle of balance tank		°	Front 15, rear 15
	Maximum steering angle of frame		°	±27
	Minimum turning radius		m	7.3
	Shovel blade	Maximum lifting height	mm	400
		Maximum shoveling depth	mm	500
		Maximum tilting angle	°	90
		Cutting angle	°	28-70
		Slewing angle	°	360
		Length X Chord height	mm	3965x610
Filling Volume	Coolant		L	50
	Fuel tank		L	280
	Engine		L	24
	Transmission		L	38
	Balance tank		L	73(x2)
	Driving axie		L	25
	Rim brake		L	9(x4)
	Hydraulic oil		L	110
