Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
XCMG
Certification:
IOS/CE
Model Number:
XP165U

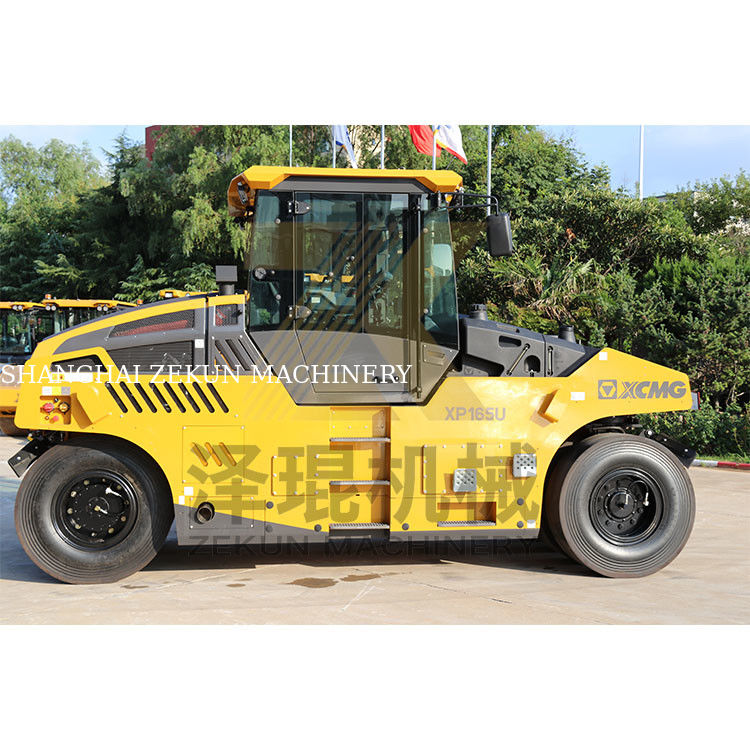

| Model: Road Roller | Condition: Brand New | Application: Construction |
| Brand Name: XCMG | Model Number: XP165U | Certification: ISO, CE |
| Operating Weight: 13100kgs | Drum width: 2055mm | Dimension: 4780×2055×3340mm |
| Working speed(F/R): 0-18 km//h | Theoretical gradability: 30% | Place of Origin: Jiangsu, China (Mainland) |
| Warranty: 1 year | Engine Model: SC4H115.4G2B | After-sales Service Provided: Engineers available to service machinery overseas |
| Item | Content | Unit | XP165U |
| Weights Parameter |
Maximum operating weight(wet sand + ballast block) | kg | 16000 |
| Operating weight (with roof, without ballast) | kg | 8500 | |
| Operating weight (with water ballast) | kg | 10850 | |
| Operating weight (with dry sand ballast) | kg | 12000 | |
| Operating weight (with wet sand ballast) | kg | 13200 | |
| Operating weight (with water + ballast block) | kg | 13650 | |
| Operating weight (with dry sand + ballast block) | kg | 14800 | |
| Maneuverability | Working speed(F) | km/h | 0～19 |
| Gradeability | % | 30 | |
| Minimum turning radius | mm | 5980 | |
| Minimum ground clearance | mm | 280 | |
| Wheel base | mm | 3900 | |
| Steering angle | º | ±30 | |
| Oscillation of front wheel | mm | ±50 | |
| Braking distance | m | 7 | |
| Compaction Parameters | Drum width | mm | 2075 |
| Overlapping quantity | mm | 30 | |
| Ground pressure | kPa | 100～550 | |
| Engine | Model | CUMMINS F3.8 | |
| Type | Turbocharged, water-cooled, electric controlled, No EGR |
||
| Rated power | kW | 90 | |
| Rated speed | r/min | 2200 | |
| Tire | Specification | 11.00--20 | |
| Ply rating | 16 | ||
| Air pressure | kPa | 600～650 | |
| Miscellaneous | Drive method | Hydraulic drive | |
| Service brake | Hydraulic brake | ||
| Parking brake | Hydraulic wet multi-disc brake |
||
| Steering system | Front wheel steering | ||
| Steering control | Hydraulic |
