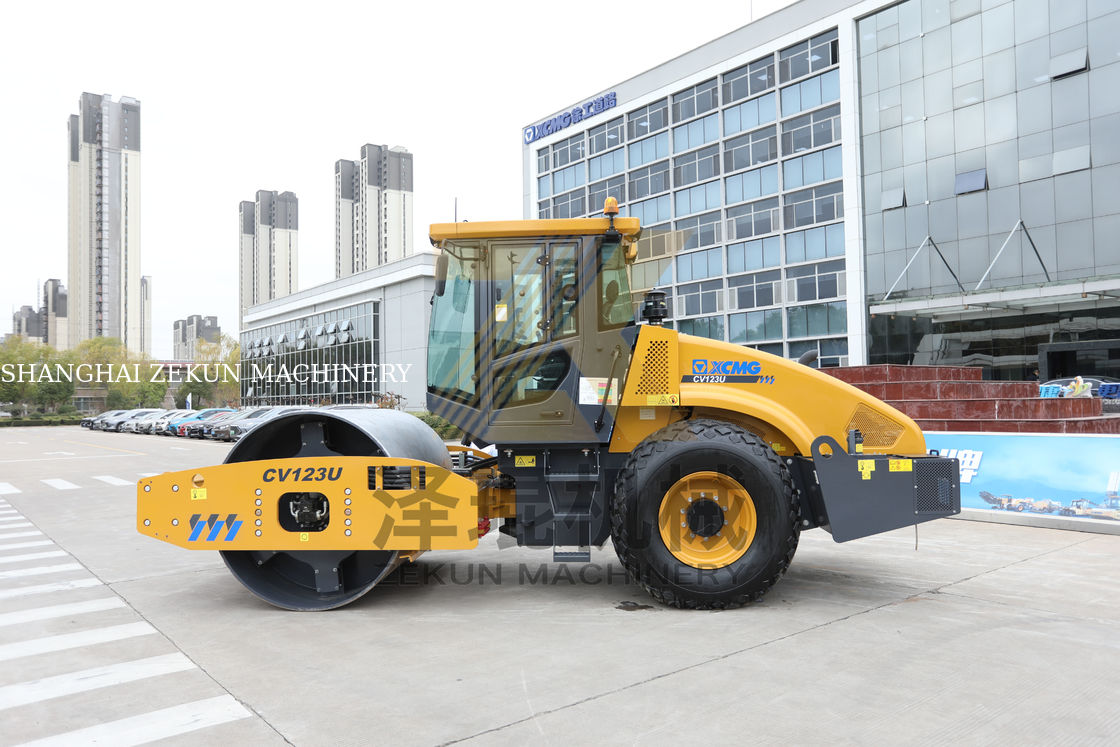

Name: 12ton XCMG CV123U Drum Roller EU Stage T4F Road Machine
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: CV123U
Price: 1.00 USD
Availability: InStock

Home > products > Road Construction Machinery >

12ton XCMG CV123U Drum Roller EU Stage T4F Road Machine

Equipment Use In Road Construction

Construction Road Equipment

Equipment Used In Construction Of Road

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

CV123U

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

23ton XCMG 3Y263J Static Three Drum Roller China Stage III Equipment

Get Best Price

12ton XCMG 3Y153J Static Drum Roller China Stage III Equipment

Get Best Price

3ton XCMG XMR303 Vibratory Roller China Stage IV Road Machine

Get Best Price

16ton XCMG XS163 Vibratory Roller China Stage II Equipment

Get Best Price

Contact Now

Product Description

Model: Road Roller	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number: CV123U	Certification: ISO, CE
Operating Weight: 12400kgs	Drum width: 2130mm	Dimension: 6150×2300×3150mm
Working speed(F/R): 0-11km//h	Theoretical gradability: 45%	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Engine Model: QSF3.8	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content	Unit	CV123U/CV123PDU
Weights	Operating weight	kg	12400/13250/13700
	Maximum operating weight	kg	12400/13250/13700
	Front axle weight	kg	6700/7550/8000
	Rear axle weight	kg	57001
	Static linear load	N/cm	308/-
Maneuverability	Working speed(F/R)	km/h	0~11.2
	Gradeability	%	45
	Minimum turning radius(outer)	mm	6800
	Minimum ground clearance	mm	393/443
	Wheel base	mm	3010
	Steering angle		±30
	Oscillation angle		±10
Compaction	Vibration frequency	Hz	30/35
	Nominal amplitude	mm	1.8/0 9, 1.6/0.8
	Excitation force	kN	280/190
	Drum diameter	mm	1523/1723
	Drum width	mm	2130
Engine	Model	-	QSF3.8
	Emission	-	T4F
	Rated power	kW	97
	Rated speed	r/min	2200
Tire	Spec.		23.1-26-12G23TL/23.1-26-12R1T1
	Ply rating	-	12
	Air pressure	kPa	200/170
Capacities	Fuel tank	L	230
Capacities	Urea tank	L	18.9

12ton XCMG CV123U Drum Roller EU Stage T4F Road Machine 2

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
