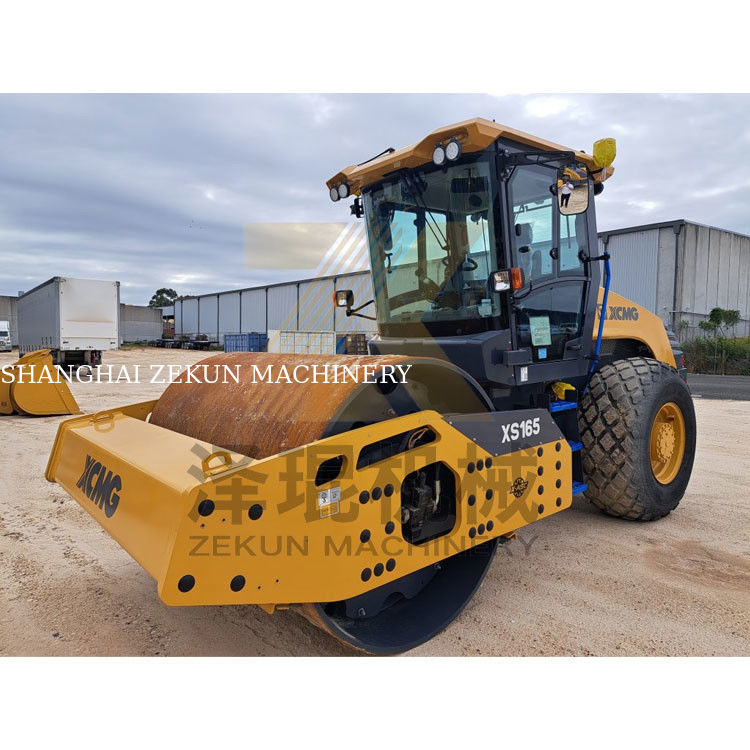

Name: 16ton XCMG XS165 Full Hydraulic Single Drum Roller EU Stage V
Brand: Shanghai Zekun Machinery Co., Ltd.
SKU: XS165
Price: 1.00 USD
Availability: InStock

Home > products > Road Construction Machinery >

16ton XCMG XS165 Full Hydraulic Single Drum Roller EU Stage V

Equipment Use In Road Construction

Construction Road Equipment

Equipment Used In Construction Of Road

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

XCMG

Certification:

IOS/CE

Model Number:

XS165

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

Call for price

Packaging Details

Container or Shipped by Ro-Ro or Bulk shipment

Delivery Time

7-15days

Payment Terms

T/T

23ton XCMG 3Y263J Static Three Drum Roller China Stage III Equipment

Get Best Price

12ton XCMG 3Y153J Static Drum Roller China Stage III Equipment

Get Best Price

3ton XCMG XMR303 Vibratory Roller China Stage IV Road Machine

Get Best Price

16ton XCMG XS163 Vibratory Roller China Stage II Equipment

Get Best Price

Contact Now

Product Description

Model: Road Roller	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number: XS165/XS165PD	Certification: ISO, CE
Operating Weight: 16400kgs	Drum width: 2130mm	Dimension: 6010×2300×3040mm
Working speed(F/R): 0-11.85km//h	Theoretical gradability: 60%	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Engine Model: QSB4.5	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content	Unit	XS165(Smooth drum)	XS165PD(Padfoot drum)	XS165PDII (Padfoot segment)
Weights	Operating weight	kg	16400	17250	17600
	Front axle weight	kg	16000	16850	17200
	Rear axle weight	kg	10800	11650	11650
	Static linear load (front/rear)	N/cm	5200	5200	5200
Driving Parameters	Operating speed	km/h	497	-	-
	Theoretical gradability	%	0-11.00	0-11.85	0-11.85
	Minimum turning radius (inside/outside)	mm	60%	45%	45%
	Minimum ground clearance	mm	4220	422000%	4220
	Wheelbase	mm	417	517	517
	Steering angle	°	3060	3060	3060
	Oscillation angle	°	±35	±35	±35
	Braking distance	m	±10	±10	±10
Compaction Parameters	Vibration frequency	Hz	3.9	3.9	3.9
	Nominal amplitude	mm	28/33	28/33	28/33
	Excitation force (high/low frequency)	kN	2.0/1.0	1.8/0.9	1.8/0.9
	Drum diameter	mm	340/236	340/236	340/236
	Drum width	mm	2130	2130	2130
Hydraulic system	Charge pressure, drive system	MPa	2.4	2.4	2.4
	Peak pressure, drive system	MPa	40	40	40
	Peak pressure, vibration system	MPa	40	40	40
	Peak pressure, steering system	MPa	25	25	25
Engine	Model	-	QSB4.5	QSB4.5	QSB4.5
	Type	-	Turbocharger water-cooled electrical control
	Rated power	kW	119	119	119
	Rated speed	r/min	2200	2200	2200

16ton XCMG XS165 Full Hydraulic Single Drum Roller EU Stage V 2

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
